XD-CNC20 CNC spring forming machine for springs 0.30-2.30mm wire diameter
XD-CNC23 universal spring forming machine
Details:
1. CNC23 coiling spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis.
The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical
part has eight sets of sliding blocks.the winch and cam rotation have three mechanical action types:
extruding,punching and molding.
2. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding wheels
constitutes of one group, totally two groups.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Technical Parameter:
| Model: | XD-CNC20 |
| Wire diameter: | φ0.3～2.3 mm |
| Axes: | 3 axes |
| Maximum Outside Diameter: | 40mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 100pcs/min |
| Feed Speed | 200m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 2.7 KW |
| Cam Servo Motor: | 2.7 KW |
| Quin Servo Motor | 0.75 KW |
| Power AC: | 220V 3P 50/60Hz |
| Dimensions (L*D*H): | 1400X550X1600MM |
| Wooden Case Dimensions | 1600x600x1700mm |
| Machine Weight: | 900Kg |
| Gross Weights | 950Kg |
Our Products:
Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and versatile spring machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.
Why us:
· 13 years of experience in this line
· All machines recieve good comments from customer
· Independent R&D ability
· Always happy to serve and work with our customers
To order:
· Show us what you need
· Provide the suitable machine as per your requirement
· Arrange production after 30% payment
· Ship the goods after full payment
· Following your machine until it reaches its destination

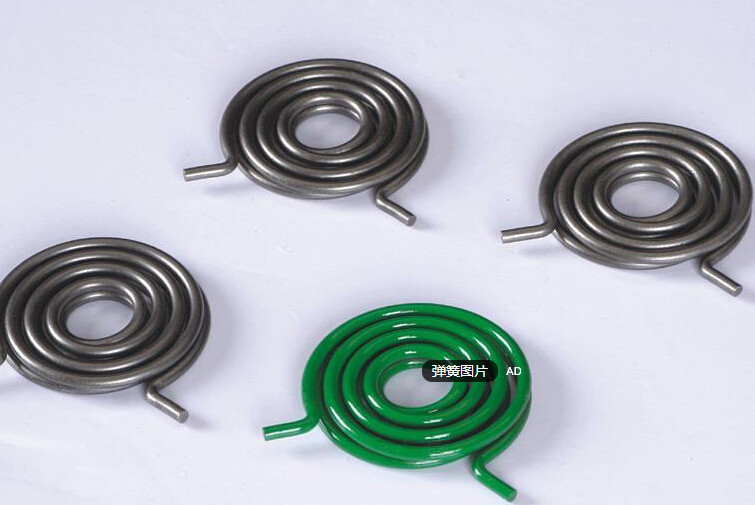

Applicated products:
Product Tags:
|
|
CNC Versatile Spring Forming Machine , 0.30 - 2.30mm Wire Diameter Images
|
